Flange Sealant
Polymeric Flange Sealants - PFS

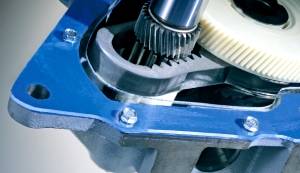

PFS replaces most conventional gaskets on metal surfaces. It cures in the absence of air and will not shrink, tear or crack and provides maximum face to face contact of mated parts. PFS Gasket provides an instant seal at low pressures and fully cures in 1 to 8 hours depending upon part configuration and clearance. No retorquing of flange bolts is required as stress relaxation of this Polymeric Flange Sealant does not occur and face to face contact of the metal surfaces makes this unnecessary.

PFS Yellow Yellow Dot

  • General purpose
  • Eliminates gaskets
  • Fills gap to .05"
  • Non-shrinking
  • No retorquing required
  • Remains flexible
  • Removal with normal tools
  • Chemical and fluids resistant
  • Also use with existing gaskets

PFS Blue Blue Dot
  • For Aluminum/Steel parts
  • Eliminates gaskets
  • Fills gap to .05"
  • Non-shrinking
  • No retorquing required
  • Remains semi-flexible
  • Removal with normal tools
  • Chemical and fluids resistant
  • Also use with existing gaskets

PFS Red Red Dot

  • High viscosity
  • Eliminates gaskets
  • Fills gap to .05"
  • Non-shrinking
  • No retorquing required
  • Remains semi-flexible
  • Removal with normal tools
  • Chemical and fluids resistant
  • Also use with existing gaskets

Gasketing

Polymeric Flange Sealant Product Line

SAF-T-LOK Polymeric Flange Sealant pdf page


Polymeric Flange Sealant Red Dot PFS 51

Applications/Properties  Data Sheets

Part Number Container Size Case Qty
21032 50 ml Tube 10
21042 250 ml Tube 4
21063 300 ml Cartridge 12

Polymeric Flange Sealant Green Dot PFS Green

Applications/Properties  Data Sheets

Part Number Container Size Case Qty
20932 50 ml Tube 10
20942 250 ml Tube 4
20963 300 ml Cartridge 12

Polymeric Flange Sealant Orange Dot PFS Orange

Applications/Properties  Data Sheets

Part Number Container Size Case Qty
21432 50 ml Tube 10
21442 250 ml Tube 4
21463 300 ml Cartridge 12

Polymeric Flange Sealant Yellow Dot PFS Yellow

Applications/Properties  Data Sheets

Part Number Container Size Case Qty
21532
50 ml Tube 10
21542 250 ml Tube 4
21563 300 ml Cartridge 12

Polymeric Flange Sealant Purple Dot PFS Purple

Applications/Properties  Data Sheets

Part Number Container Size Case Qty
2113 50 ml Tube 10
21142 250 ml Tube 4
21163 300 ml Cartridge 12

Polymeric Flange Sealant Blue Dot PFS Blue

Applications/Properties  Data Sheets

Part Number Container Size Case Qty
21732 50 ml Tube 10
21742 250 ml Tube 4
21763 300 ml Cartridge 12

Polymeric Flange Sealant Blue Dot PFS Blue#2

Applications/Properties  Data Sheets

Part Number Container Size Case Qty
21932 50 ml Tube 10
21942 250 ml Tube 4
21963 300 ml Cartridge 12

Polymeric Flange Sealant Red Dot PFS Red

Applications/Properties  Data Sheets

Part Number Container Size Case Qty
21832 50 ml Tube 10
21842 250 ml Tube 4
21863 300 ml Cartridge 12

Polymeric Flange Sealant
PFS 51
Red Dot

- ELIMINATES GASKETS
- HIGH TEMPERATURE

Icon PDF
Polymeric Flange Sealant
PFS 51
Red Dot

TECHNICAL DATA SHEET
MATERIAL SAFETY DATA SHEET

Polymeric Flange Sealant
PFS Green
Green Dot

- ELIMINATES GASKETS
- THIN GAP

Icon PDF
Polymeric Flange Sealant
PFS Green
Green Dot

TECHNICAL DATA SHEET
MATERIAL SAFETY DATA SHEET

Polymeric Flange Sealant
PFS Orange
Orange Dot

- ELIMINATES GASKETS
- MEDIUM GAP

Icon PDF
Polymeric Flange Sealant
PFS Orange
Orange Dot

TECHNICAL DATA SHEET
MATERIAL SAFETY DATA SHEET

Polymeric Flange Sealant
PFS Yellow
Yellow Dot

- ELIMINATES GASKETS
- GENERAL PURPOSE

Icon PDF
Polymeric Flange Sealant
PFS Yellow
Yellow Dot

TECHNICAL DATA SHEET
MATERIAL SAFETY DATA SHEET

Polymeric Flange Sealant
PFS Purple
Purple Dot

- ELIMINATES GASKETS
- HIGH STRENGTH
- FLEXIBLE

Icon PDF
Polymeric Flange Sealant
PFS Purple
Purple Dot

TECHNICAL DATA SHEET
MATERIAL SAFETY DATA SHEET

Polymeric Flange Sealant
PFS Blue
Blue Dot

- ELIMINATES GASKETS
- FOR ALUMINUM AND STEEL
- FLEXIBLE

Icon PDF
Polymeric Flange Sealant
PFS Blue
Blue Dot

TECHNICAL DATA SHEET
MATERIAL SAFETY DATA SHEET

Polymeric Flange Sealant
PFS Blue#2
Blue Dot

- ELIMINATES GASKETS
- ALUMINUM
- LARGE GAP

Icon PDF
Polymeric Flange Sealant
PFS Blue#2
Blue Dot

TECHNICAL DATA SHEET
MATERIAL SAFETY DATA SHEET

Polymeric Flange Sealant
PFS Red
Red Dot

- ELIMINATES GASKETS
- HIGH VISCOSITY

Icon PDF
Polymeric Flange Sealant
PFS Red
Red Dot

TECHNICAL DATA SHEET
MATERIAL SAFETY DATA SHEET
