Flange Sealant
Polymeric Flange Sealants - PFS

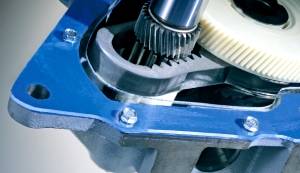

PFS replaces most conventional gaskets on metal surfaces. It cures in the absence of air and will not shrink, tear or crack and provides maximum face to face contact of mated parts. PFS Gasket provides an instant seal at low pressures and fully cures in 1 to 8 hours depending upon part configuration and clearance. No retorquing of flange bolts is required as stress relaxation of this Polymeric Flange Sealant does not occur and face to face contact of the metal surfaces makes this unnecessary.
PFS Yellow
- General purpose
- Eliminates gaskets
- Fills gap to .05"
- Non-shrinking
- No retorquing required
- Remains flexible
- Removal with normal tools
- Chemical and fluids resistant
- Also use with existing gaskets
PFS Blue
- For Aluminum/Steel parts
- Eliminates gaskets
- Fills gap to .05"
- Non-shrinking
- No retorquing required
- Remains semi-flexible
- Removal with normal tools
- Chemical and fluids resistant
- Also use with existing gaskets
PFS Red
- High viscosity
- Eliminates gaskets
- Fills gap to .05"
- Non-shrinking
- No retorquing required
- Remains semi-flexible
- Removal with normal tools
- Chemical and fluids resistant
- Also use with existing gaskets
These products are not recommended for pure oxygen systems.
PFS 51Applications/Properties Data Sheets
| Part Number | Container Size | Case Qty |
|---|---|---|
| 21032 | 50 ml Tube | 10 |
| 21042 | 250 ml Tube | 4 |
| 21063 | 300 ml Cartridge | 12 |
PFS GreenApplications/Properties Data Sheets
| Part Number | Container Size | Case Qty |
|---|---|---|
| 20932 | 50 ml Tube | 10 |
| 20942 | 250 ml Tube | 4 |
| 20963 | 300 ml Cartridge | 12 |
PFS OrangeApplications/Properties Data Sheets
| Part Number | Container Size | Case Qty |
|---|---|---|
| 21432 | 50 ml Tube | 10 |
| 21442 | 250 ml Tube | 4 |
| 21463 | 300 ml Cartridge | 12 |
PFS YellowApplications/Properties Data Sheets
| Part Number | Container Size | Case Qty |
|---|---|---|
21532 |
50 ml Tube | 10 |
| 21542 | 250 ml Tube | 4 |
| 21563 | 300 ml Cartridge | 12 |
PFS PurpleApplications/Properties Data Sheets
| Part Number | Container Size | Case Qty |
|---|---|---|
| 21132 | 50 ml Tube | 10 |
| 21142 | 250 ml Tube | 4 |
| 21163 | 300 ml Cartridge | 12 |
PFS BlueApplications/Properties Data Sheets
| Part Number | Container Size | Case Qty |
|---|---|---|
| 21732 | 50 ml Tube | 10 |
| 21742 | 250 ml Tube | 4 |
| 21763 | 300 ml Cartridge | 12 |
PFS Blue#2Applications/Properties Data Sheets
| Part Number | Container Size | Case Qty |
|---|---|---|
| 21932 | 50 ml Tube | 10 |
| 21942 | 250 ml Tube | 4 |
| 21963 | 300 ml Cartridge | 12 |
PFS RedApplications/Properties Data Sheets
| Part Number | Container Size | Case Qty |
|---|---|---|
| 21832 | 50 ml Tube | 10 |
| 21842 | 250 ml Tube | 4 |
| 21863 | 300 ml Cartridge | 12 |
Polymeric Flange Sealant
PFS 51
- ELIMINATES GASKETS
- HIGH TEMPERATURE
COLOR: PINK
SPECIFIC GRAVITY: 1.09 gm/cc
VISCOSITY: 2,000,000 - 3,000,000 cps
FLASH POINT: >250ºF
TEMPERATURE RANGE: -65ºF TO 400ºF
Polymeric Flange Sealant
PFS Green
- ELIMINATES GASKETS
- THIN GAP
COLOR: GREEN
SPECIFIC GRAVITY: 1.03 gm/cc
VISCOSITY: 100,000 - 150,000 cps
FLASH POINT: >250ºF
TEMPERATURE RANGE: -65ºF TO 350ºF
Polymeric Flange Sealant
PFS Orange
- ELIMINATES GASKETS
- MEDIUM GAP
COLOR: ORANGE
SPECIFIC GRAVITY: 1.1 gm/cc
VISCOSITY: 250,000 - 500,000 cps
FLASH POINT: >250ºF
TEMPERATURE RANGE: -65ºF TO 300ºF
Polymeric Flange Sealant
PFS Yellow
- ELIMINATES GASKETS
- GENERAL PURPOSE
COLOR: YELLOW
SPECIFIC GRAVITY: 1.03 gm/cc
VISCOSITY: 500,000 cps
FLASH POINT: >250ºF
TEMPERATURE RANGE: -65ºF TO 350ºF
Polymeric Flange Sealant
PFS Purple
- ELIMINATES GASKETS
- HIGH STRENGTH
- FLEXIBLE
COLOR: PURPLE
SPECIFIC GRAVITY: 1.06 gm/cc
VISCOSITY: 1,200,000 cps
FLASH POINT: >250ºF
TEMPERATURE RANGE: -54ºF TO 300ºF
Polymeric Flange Sealant
PFS Blue
- ELIMINATES GASKETS
- FOR ALUMINUM AND STEEL
- FLEXIBLE
COLOR: BLUE
SPECIFIC GRAVITY: 1.05 gm/cc
VISCOSITY: 350,000 cps
FLASH POINT: >250ºF
TEMPERATURE RANGE: -65ºF TO 350ºF
Polymeric Flange Sealant
PFS Blue#2
- ELIMINATES GASKETS
- FOR ALUMINUM AND STEEL
- LARGE GAP
COLOR: BLUE
SPECIFIC GRAVITY: 1.04 gm/cc
VISCOSITY: 2,500,000 cps
FLASH POINT: >250ºF
TEMPERATURE RANGE: -54ºF TO 300ºF
Polymeric Flange Sealant
PFS Red
- ELIMINATES GASKETS
- HIGH VISCOSITY
COLOR: RED
SPECIFIC GRAVITY: 1.14 gm/cc
VISCOSITY: 2,500,000 cps
FLASH POINT: >250ºF
TEMPERATURE RANGE: -65ºF TO 300ºF
SAF-T-LOK and SAF-T-EZE are registered trademarks of SAF-T-LOK International Corporation.
